Camcorder made by Grundig
::: for parts only :::

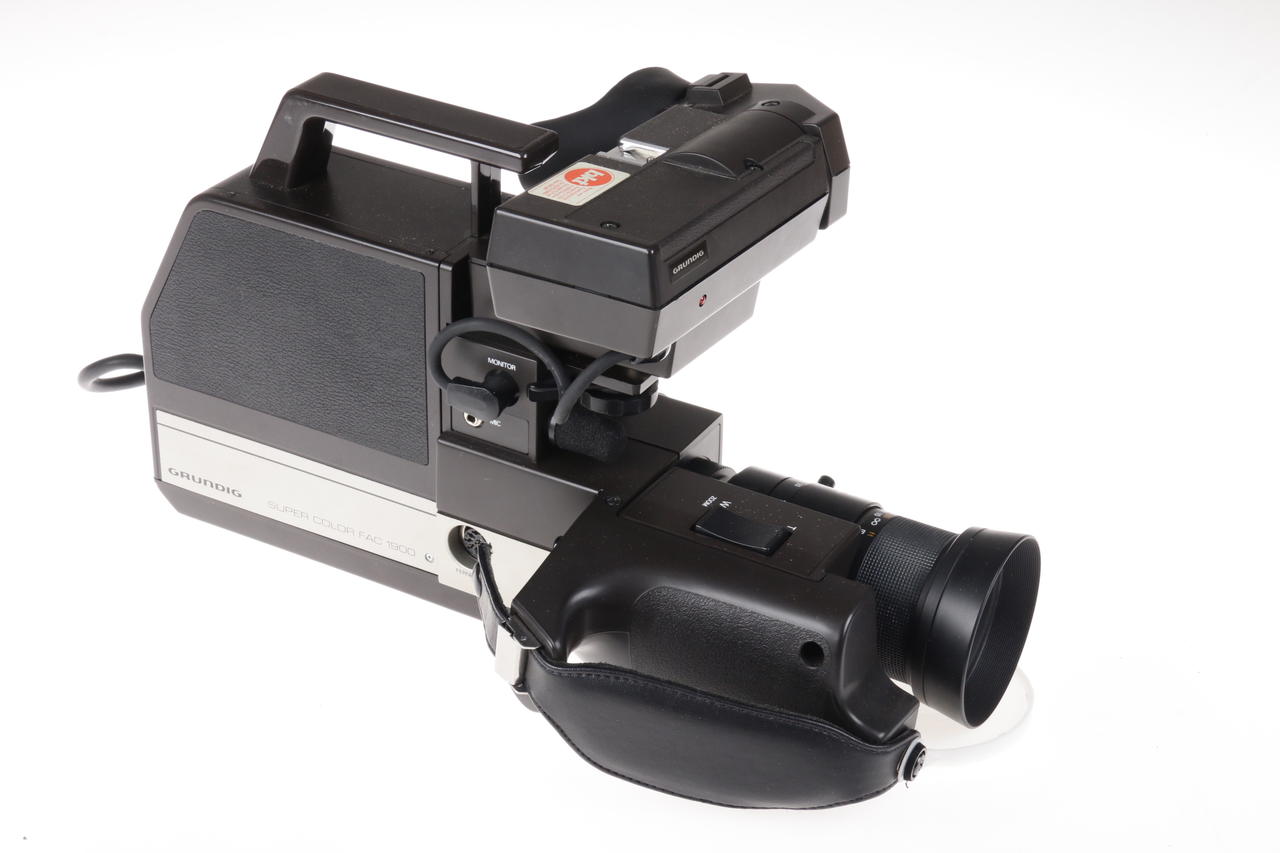

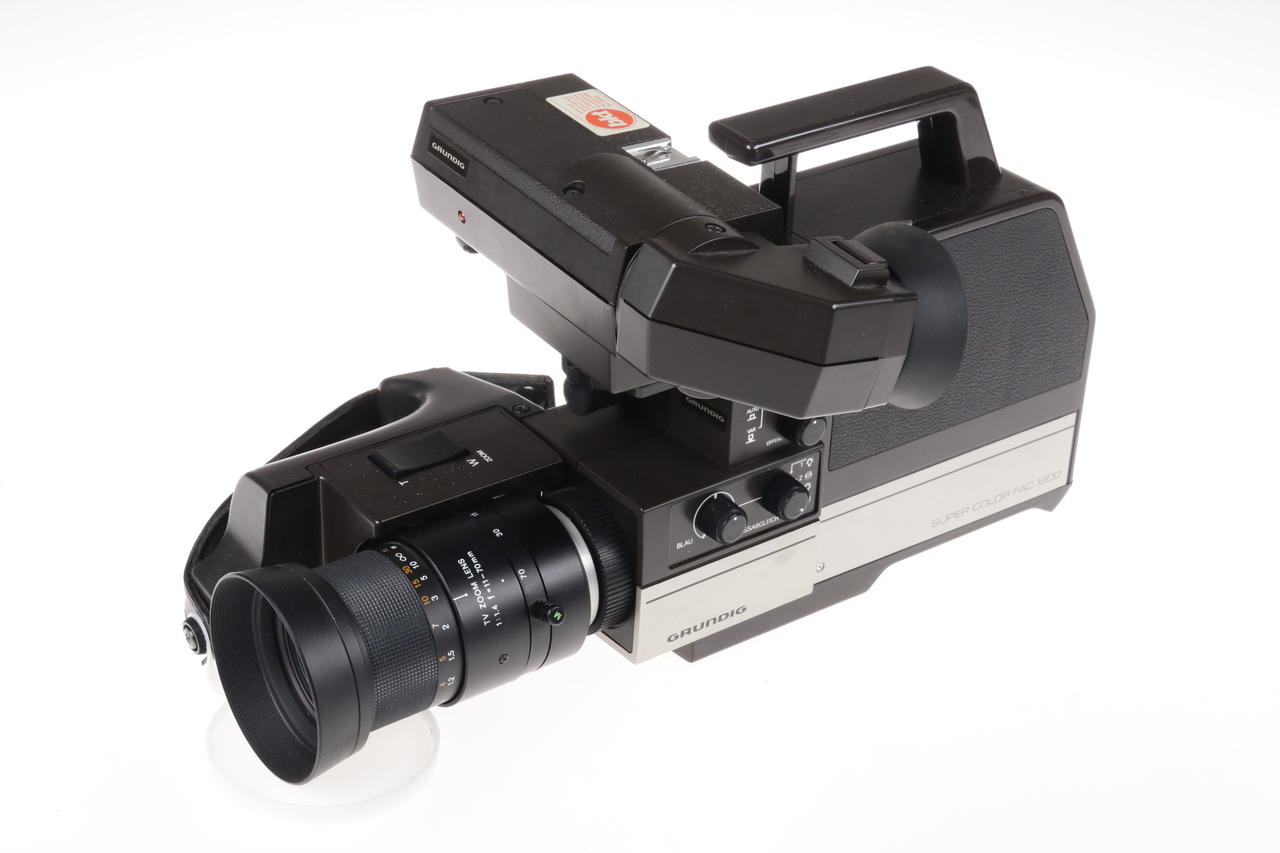

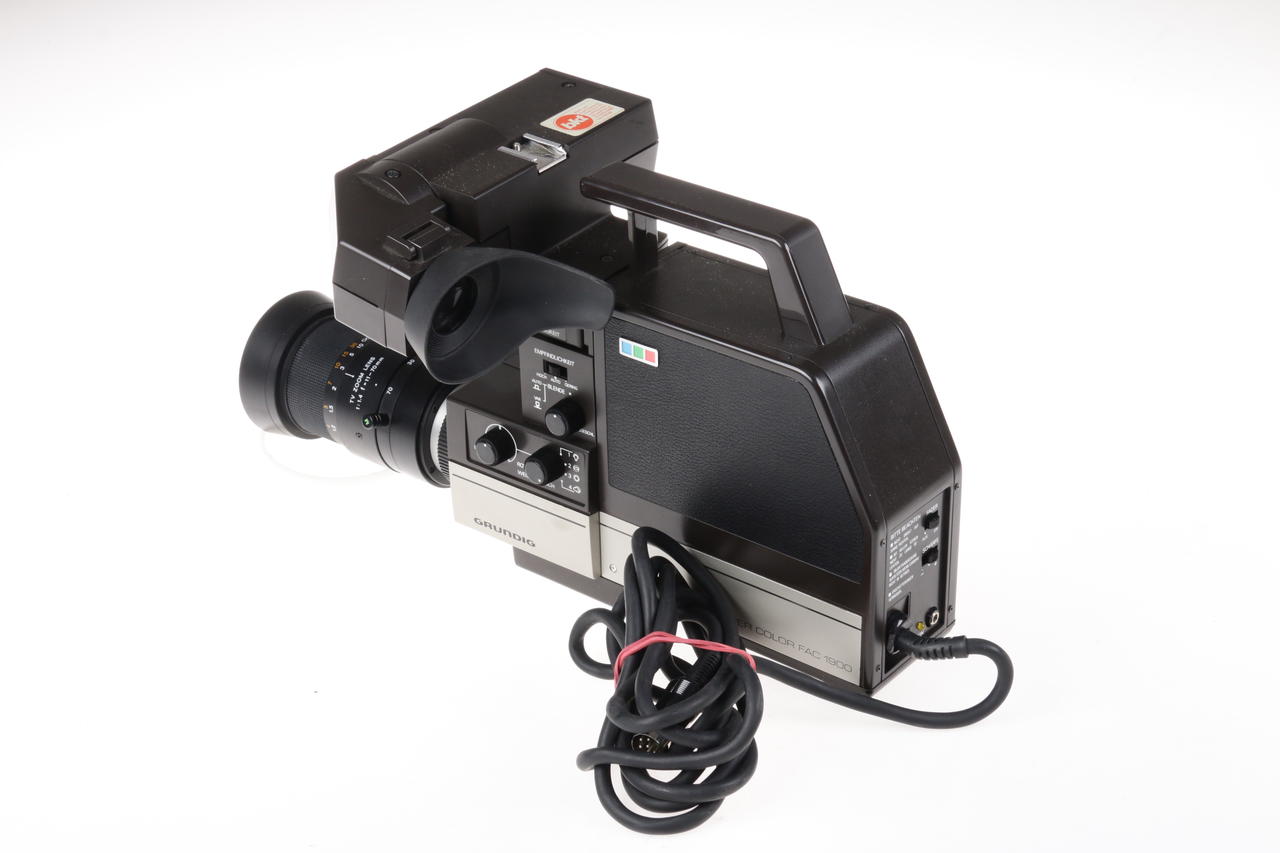

Grundig Supercolor FAC 1900 Videokamera
€ 39,00
no VAT (differential taxation according to §25a UStG.) excl. Shipping Cost
Brand
No brand
Item No.
fkU10198645
In stock
Condition: N
ND
A
B
B-
C
C-
D
Used item is defective or shows massive signs of use. The article can be used as a parts carrier or for rebuilding.
Condition in Detail: function not tested, minor signs of wear, minor dust inclusions

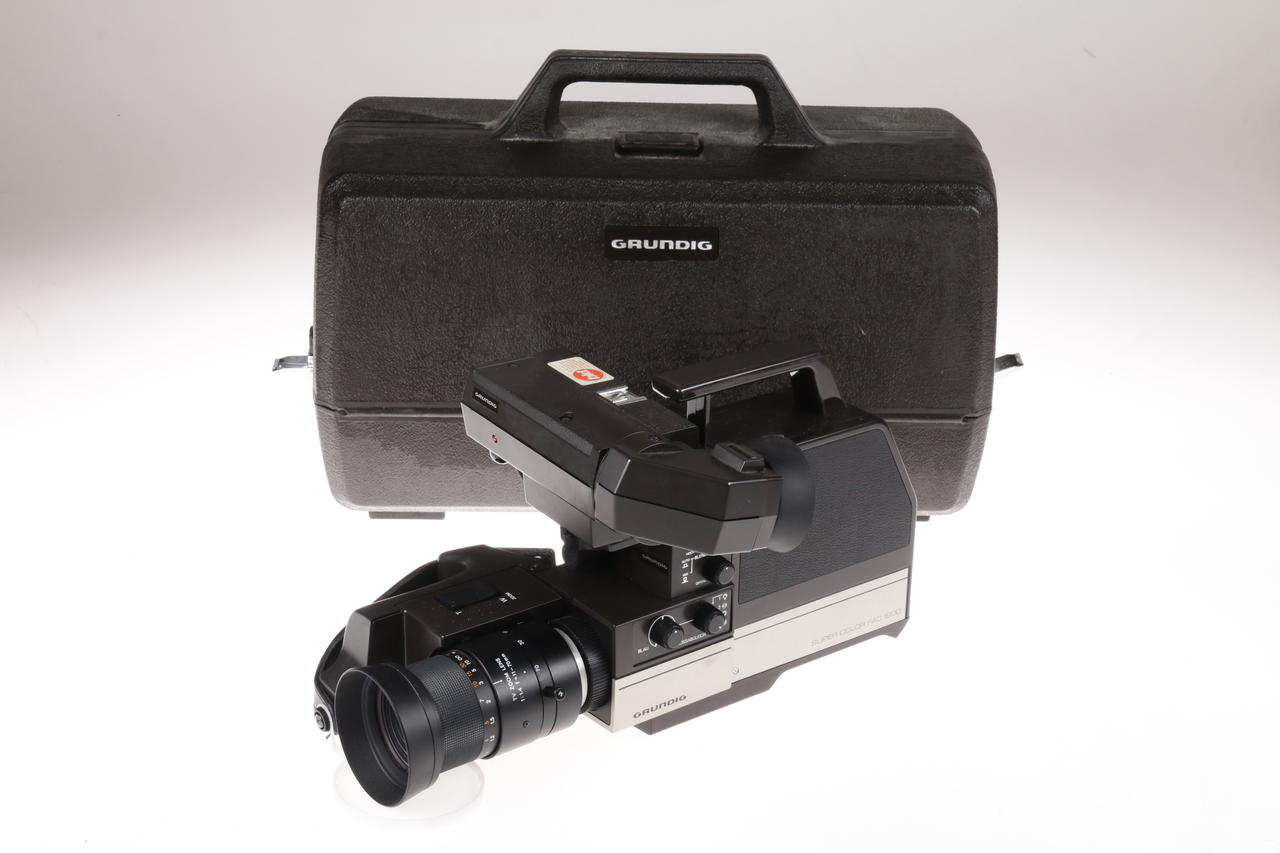

Scope of Delivery: user's manual, case
| Recording tube |
⅔-inch MF TRINICON tube |
|---|---|
| Lens |
6.3x motor zoom (f=1:1.4/11 – 70 mm) with macro function and automatic/manual aperture control |
| Signal system |
CCIR standard, PAL system |
| Scanning system |
625 lines, 2:1 interlaced scanning, 25 frames/sec. |
| Synchronization |
internal synchronization |
| Horizontal frequency |
15.625 kHz |
| Vertical frequency |
50 Hz |
| Horizontal resolution |
300 lines measured in the center of the image |
| Illumination |
approx. 60 lux at t = 1.4 |
| Automatic gain control |
100 to 100,000 lux |
| Video output |
FBAS signal 1 Vpp at 75 2, asymmetrical, negative synchronization |
| Signal-to-noise ratio |
min. 45 dB rated according to CCIR standard |
| Viewfinder |
Electronic viewfinder (1½” black-and-white picture tube) |
| Outputs |
Camera cable (2 m), headphone jack, camera remote control jack |
| Microphone |
Built-in omnidirectional electret condenser microphone |
| Connection for external microphone |
mini jack, – 20 dB, suitable for low-impedance microphones |
| Power supply |
12 volts DC |
| Power consumption |
6.5 W (camera only); 8.3 W (camera and viewfinder) |
| Operating temperature |
0° to 40° C |
| Weight |
2.9 kg (without camera cable); 2.4 kg camera and 0.5 kg viewfinder |
| Dimensions |
approx. 225 x 200 x 351 mm; approx. 158 x 190 x 351 mm (camera only); approx. 190 x 76 x 105 mm (viewfinder) |
